LiFePO4 battery 36v 48v 72V 20ah 40ah 50ah 60ah 100ah deep cycle lithium ion battery for electric vehicle

  • 1 - 99 Packs
    $300.00
  • >=100 Packs
    $250.00
Battery Size:
OEM
Nominal Capacity:
10ah-100ah
Nominal Voltage:
48V/60V/ 72v
Lead Time:
Quantity(Packs) 1 - 1000 >1000
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
CTS
Model Number:
7240
Application:
Power Tools, EV/ESS, AGV
Weight:
20kg-30KG
Components:
nmc/LIFEPO4 battery
Size:
OEM
Voltage:
48V/60V/ 72v
Norminal capacity:
10ah-100ah
transportation:
by sea, by air, by express
Life cycle:
4000 times
Protection:
integrated BMS
Warranty:
3 years
Housing:
Metal, Al
Certification:
UL, ce, MSDS
Type:
nmc /LIFEPO4 BATTERY
Discharge Current:
1C continuous, 3C max
Charge Current:
0.5C
Supply Ability
Supply Ability:
50000000 Pack/Packs per Year
Packaging & Delivery
Packaging Details
wooden case
Port
shenzhen
Lead Time :
Quantity(Packs) 1 - 1000 >1000
Est. Time(days) 25 To be negotiated

1.Product description

LiFePO4 battery  36v 48v 72V 20ah 40ah 50ah 60ah 100ah deep cycle lithium ion battery for electric vehicle



2.Why choose us



CTS is a professional manufacturer engaging in research, development, production, marketing and service of lithium ion pouch battery cell, battery pack and battery management system.



1.CTS is in the lithium battery filled with around 10 years, the factory is around 15000 square meters.
2.CTS had around 50 enginners in structural, software and hardware, they are all in the lithium battery filled within around 5-10 years.
3.CTS had some big project in Canada, Australia and Netherlands, all of our designs and process are in line with the high-end market.
4.CTS also have a good BMS supplier who is the first brand in china with high techical and good service.



3.Battery Paremeters

                                                              72V 40AH



Battery Specification

Note

1

Battery Type

Lifepo4 battery



2

Array Mode

4p20s

4 in parallel and 20 in series

3

Nominal Capacity

40ah at 23±2℃

Standard charge and discharge

4

Nominal Voltage

72v



5

Energy

2.8kWh at23±2℃



6

Min Capacity

40Ah



7

Charging Voltage

84v



8

Discharge End Voltage

60v



9

Standard Charging Method

CCCV and CC is 20A

Tempeature23±2℃,charge end with 2.5h or current drops to 0.02C

10

Max.Charge Current

1C

Temperature23±2℃

11

Standard Discharging Method

1C

Constant Current Discharge with 1C

12

Max.Discharge Current

1.5C

Discharge Time: Less than 60s(at23±2℃)

13

Cycle life

>3500cycles

0.5C Charge,1C discharge and Capacity

Retention≥80% of initial capacity

14

Operating Temperature

0℃~45℃

Charging Operating

-20℃~45℃

Discharging Operating

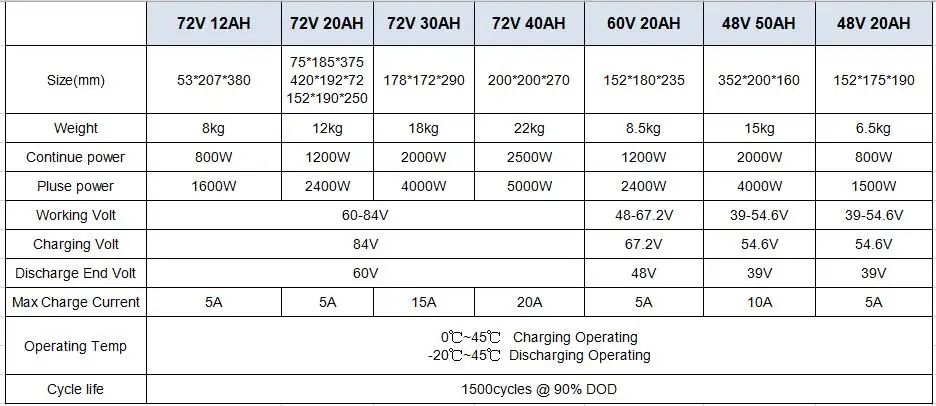

4.Related products



48V 20AH



48V30Ah





60V 32AH

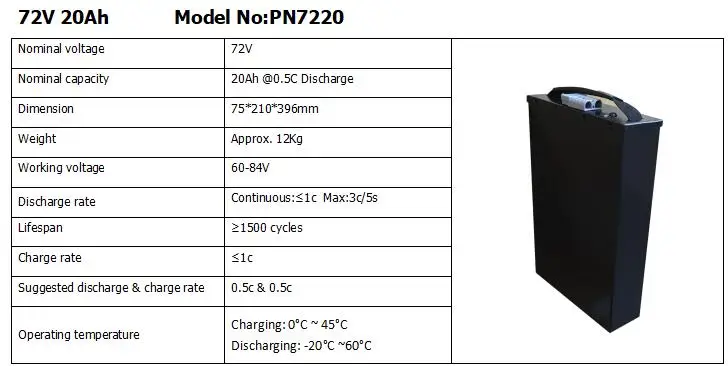

72V 20AH



72V 40AH



72V 100AH

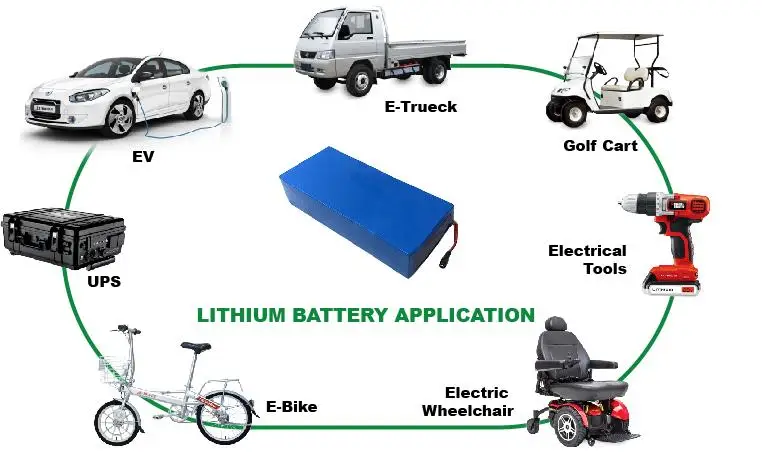

5.Application

EV Application





6.Factory show

LiFePO4 and NMC(Li(NiCoMn)O2) are the major material. We have more 30 types of cells, and could make OEM battery pack from 12V-200V, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools, unmanned airplane, golf cart, fork lift, cleaning car, electric wheelchair, etc.
