Top Quality 3kw 5kw hybrid powerwall on/off grid solar ESS system for energy storage

FOB Reference Price:Get Latest Price
$1,588.00 - $3,160.00 / Pack | 1 Pack/Packs (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Packs) 1 - 50 >50
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
CTS
Model Number:
CTS5000
Weight:
65KG
Nominal Capacity:
100ah/140ah/200ah
Battery type:
LiFePo4 Battery
Nominal Voltage:
51.2v
Capacity:
100ah/140ah/200ah
Application:
Solar System
Certificate:
CE/MSDS/UN38.3
Warranty:
3-5 Years
Cycle life:
3000times
OEM:
yes
Factory:
yes
Sealed Type:
Sealed
Maintenance Type:
Free
Usage:
solat storage systems
Voltage:
51.2v
Size:
625*548*185mm
Supply Ability
Supply Ability:
1000000 Watt/Watts per Day
Packaging & Delivery
Packaging Details
Our battery pack is packed by foam and carton for long distance transportation
Port
shenzhen
Lead Time :
Quantity(Packs) 1 - 50 >50
Est. Time(days) 20 To be negotiated
Welcome to CTS

Top Quality 3kw 5kw hybrid powerwall on/off grid solar ESS system for energy storage


CTS is a professional manufacturer engaging in research,development,production,marketing and service of lithium ion pouch battery cell, battery pack and battery management system.

LiFePo4 and NMC(Li(NiCoMn)O2) are the major material. We have more 30 types of cells, and could make OEM battery pack from 12v-200v, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.

Product Introduction

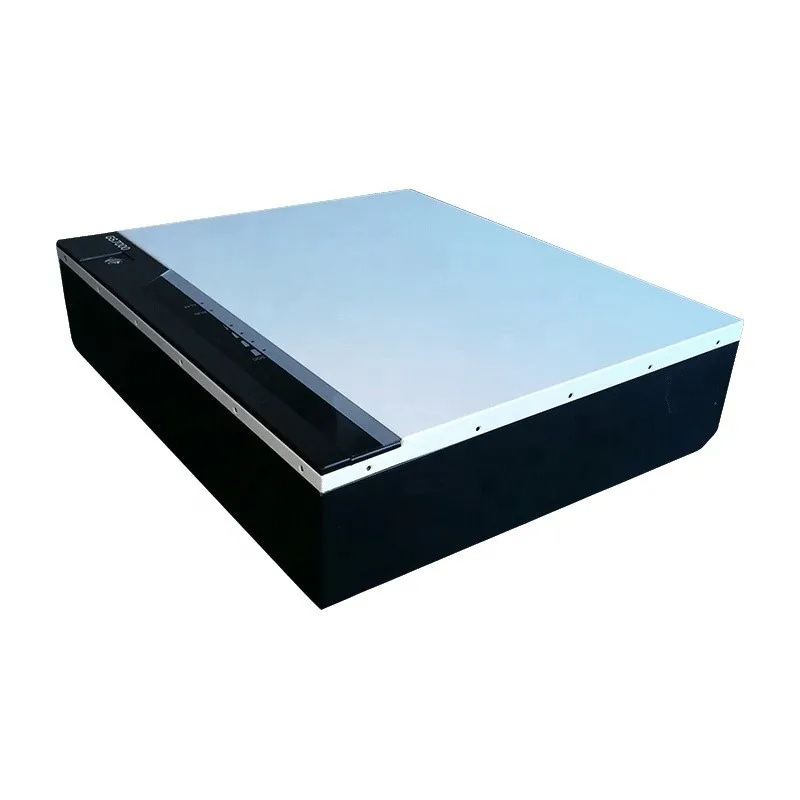

48V Solar Battery with Inverter

The safest and most reliable Lithium technology

IP54 (indoor/outdoor installation) 5kWh / 7kWh / 10kWh

Integration with Hybrid inverter

In-built state-of-the-art Battery Management System

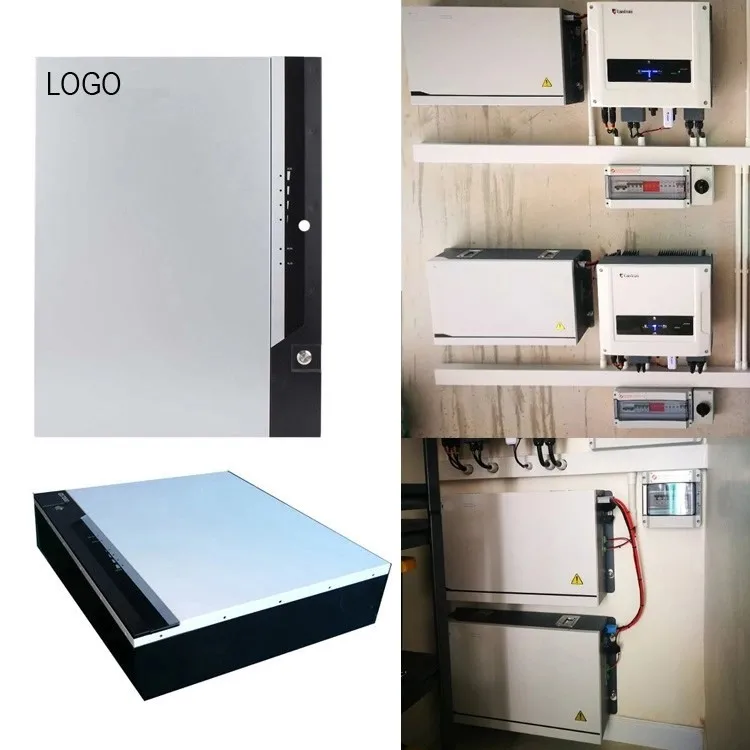

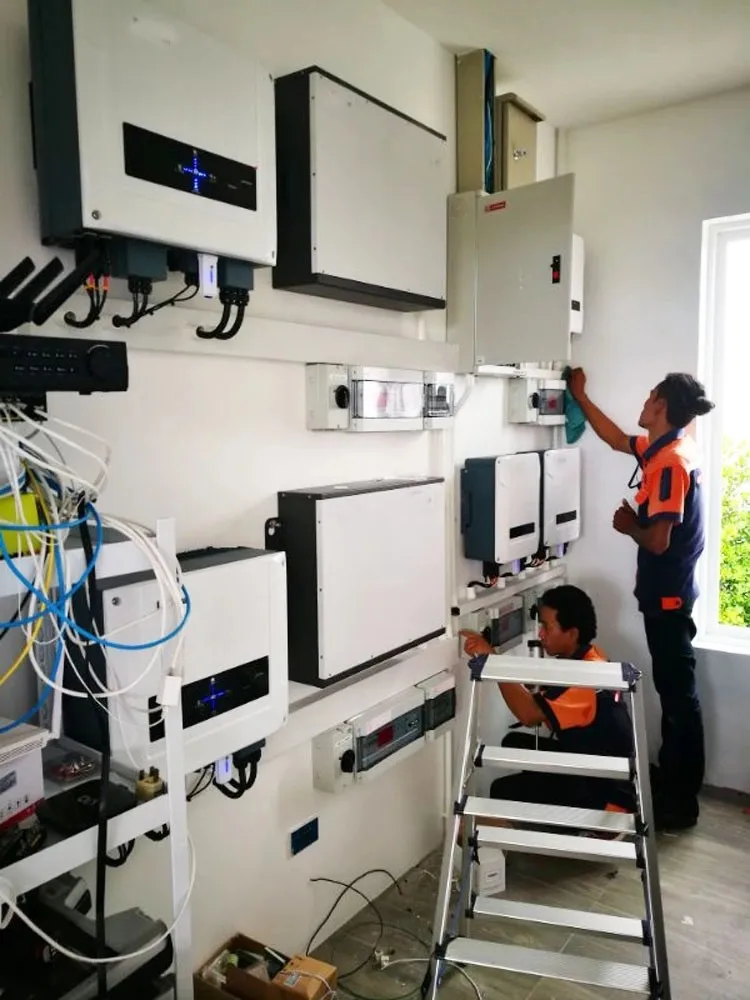

Wall-mounted convenient installation

5-year warranty (6000 cycles)

Product Parameters
CTS5000
CTS7000
CTS10000
Nominal Parameters
Voltage
51.2Vdc
51.2Vdc
51.2Vdc
Capacity
100Ah
140Ah
200Ah
Energy
5kWh
7kWh
10kWh
Warranty
5 years
5 years
5 years
Dimensions (W/H/D)
625/548/185mm
694/620/165mm
694*620*180mm
Weight
<65Kg
<90kg
<100kg
Basic Parameters
Life time (25°C)
10 years
Life cycles (90% DOD, 25°C)
6000 cycles
Storage time / temperature
6 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature
-20°C to 60°C @60+/-25% Relative Humidity
Storage temperature
0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard
UL 1642
EMC standard
IEC 61000
Enclosure protection rating
IP54
Electrical Parameters
Operation voltage
43.2 - 57.6Vdc
43.2 - 57.6Vdc
43.2 - 57.6Vdc
Max. charging voltage
57.6Vdc
57.6Vdc
57.6Vdc
Max. charging current
50A
70A
60A
Max. discharging current
50A
70A
60A
Pulse discharging current
100A<10s
140A<10s
120A<10s
Communication Parameters
Network interface
RS485
Main Products
Company Overview

CTS is a professional manufacturer engaging in research,development,production,marketing and service of lithium ion pouch battery cell, battery pack and battery management system.

LiFePo4 and NMC(Li(NiCoMn)O2) are the major material. We have more 30 types of cells, and could make OEM battery pack from 12v-200v, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.

We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.

Not only in local market, our products are also exported to abroad market like Euro,USA,India,Australia,Korea.

We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.
